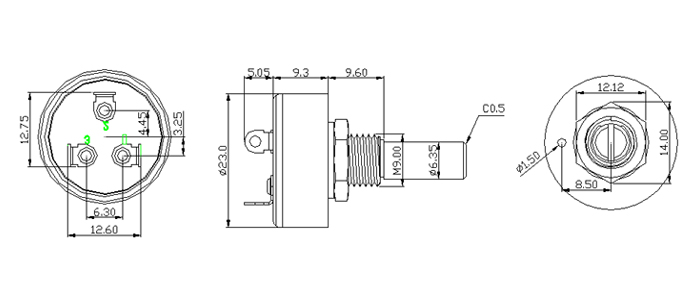

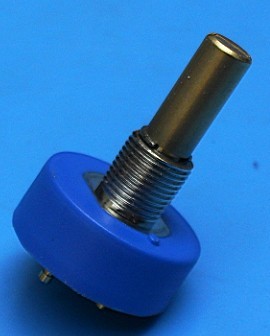

Electrical Characteristics [ 電氣性能 ]

Total resistance [ 全阻抗值 ]

500Ω~1MΩ

Total resistance tolerance [ 全阻抗值容許差 ]

±20%

Ratings power(w) [ 額定功率 ]

B curve 0.5W,except B 0.25W

Restings taper[阻抗變化特性]

A,B,*C,D,W

Residual resistance [殘留阻值]

20ΩMax.

Sliding noise [滑動雜音]

80mV Max.

Withstanding voltage [耐電壓]

1 minute at AC 500V

Insulation resistance [絕緣阻抗]

100MΩ Min. at DC 500V.

Max. operating voltage [最高使用電壓]

linear Taper B AC 500V,  except B AC 250V.

Gang error:[運動誤差]

-40dB~0dB  ±3dB Max.

Switch contact resistance[開關的接觸阻抗]

less than 0.3mΩ

Switch Ratings power

1.0A at AC /DC 125V

Mechanical Characteristics [ 机械性能 ]

Operation torque [ 回轉力矩 ]

30~200gf . cm

Rotation stopper strength [ 止動強度 ]

5.0Kgf . cm Min.

Total rotational angle [回轉角度]

300±5°

Switch rotational angle[開關的回轉角度]

50°   ±5°

Switch action[開關的轉動力]

150~450gf.cm

Endurance Characteristics [ 耐久性能 ]

Rotational life [ 回轉壽命 ]

More than10,000 cycles
